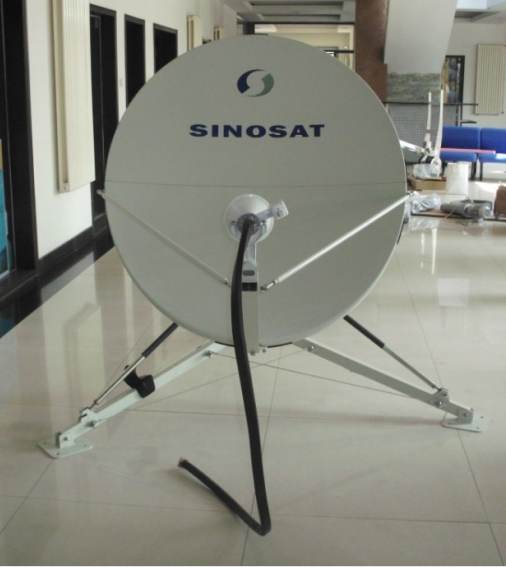

Features
-Precision compression molded offset reflector;
-Compact galvanized steel pedestal;
-Transport cases included;
-Two-person assembly in less than 10 minutes;
-No tools required;
-Quick adjust positioner.
Technical Specifications
|
Electrical |
||
|
Antenna Size |
|
1.2 m (48 in) |
|
Frequency(GHz) |
Tx |
13.75-14.50 GHz |
|
Rx |
10.70-12.75 GHz |
|
|
Polarization |
|
Linear Polarized |
|
Midband Gain(±.5 dBi) |
Tx |
43.3 dBi |
|
Rx |
41.4 dBi |
|
|
Pattern Beamwidth -3 dB |
Tx |
1.2° |
|
Rx |
1.5° |
|
|
|
|
|
|
Cross Polarization Isolation |
|
>30 dB（On Axis） |
|
Antenna Noise Temperature |
20° El |
57K |
|
30° El |
56K |
|
|
VSWR |
Tx |
1.3:1 |
|
Rx |
1.5:1 |
|
|
Feed Interface Output Waveguide Interface Flange: WR75 |
||
|
Mechanical |
||
|
Reflector Material |
Two-piece SMC compression molded |
|
|
Antenna Optics |
Offset Feed |
|
|
Elevation Adjustment Range |
10°-90°,Continuous Fine Adjustment |
|
|
Azimuth Adjustment Range |
360°Continuous |
|
|
Wind Loading |
Operational |
80 km/h |
|
Survival |
201 km/h |
|
|
Temperature |
-50°C － 80°C |
|
|
Relative Humidity |
0 － 100% |
|
|
Solar Radiation |
360 BTU/h/ft2 |
|
|
Atmospheric Conditions |
Salt,Pollutants and Contaminants as Encountered in Coastal and Industrial Areas |
|
